Power Supply Trainers

PHY-21

Rectifiers and Filter Circuits

Built-in AC power supply of 9-0-9V @ 250mA

Power Supply Trainers

Zener Diode Regulated Power Supply with Two Meters

PHY-22

Zener Diode Regulated Power Supply with Two Meters

Variable DC regulated power supply of 0-15V @ 250mA

Power Supply Trainers

PHY-171

Voltage Doubler

Built-in 10V AC power supply

Power Supply Trainers

PHY-103

3 Pin Regulator ICs Trainer

Built-in AC supplies of 18-9-0-9-18V @ 500mA

Power Supply Trainers

PHY-178

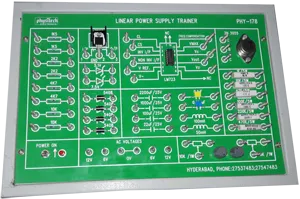

Linear Power Supply Trainer

Built-in AC voltages of 12-6-0-6-12V @ 500mA

Power Supply Trainers

Voltage to Current Converter Trainer

PHY-162

Voltage to Current Converter Trainer

Built-in fixed power supplies of +12V,-12V @ 250mA

Power Supply Trainers

Current to Voltage Converter Trainer

PHY-163

Current to Voltage Converter Trainer

Built-in fixed power supplies of +12V,-12V @ 250mA

Power Supply Trainers

Series Voltage Regulator

PHY-173

Series Voltage Regulator

Built-in fixed AC supply of 0-12V @ 250mA

Power Supply Trainers

PHY-172

Shunt Voltage Regulator

Built-in AC power supply of 0-12V

Power Supply Trainers
